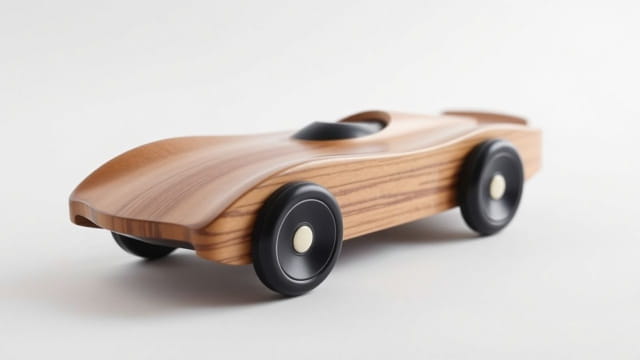

Best Pinewood Derby Car Design
The Pinewood Derby is more than just a race it’s a cherished tradition that brings families together and fosters creativity, engineering skills, and friendly competition. Whether you’re a first-time participant or a seasoned veteran, understanding what makes the best Pinewood Derby car design is essential for success. With the right planning, strategic design choices, and attention to detail, you can craft a high-performance car that not only looks great but also flies down the track. The quest for the fastest Pinewood Derby car involves a combination of physics, craftsmanship, and a bit of ingenuity.
Understanding the Basics of Pinewood Derby Car Design
What Is a Pinewood Derby Car?
A Pinewood Derby car is a small model car typically made from a block of pine wood. It’s built to compete in a gravity-powered race, usually hosted by organizations like the Boy Scouts of America. These cars must meet specific size and weight requirements, typically being no more than 7 inches long and 5 ounces in weight.
Why Design Matters
The design of your Pinewood Derby car significantly impacts its performance. While aesthetics are important, the real focus should be on creating a car that is aerodynamically efficient, well-balanced, and optimized for speed. A good design incorporates knowledge of weight distribution, friction reduction, and air resistance.
Key Factors in Creating the Best Pinewood Derby Car
1. Aerodynamics
One of the most critical aspects of Pinewood Derby car design is aerodynamics. The shape of the car affects how air flows over it, and a streamlined body can reduce drag significantly. Wedge-shaped or low-profile designs tend to perform better because they cut through the air more efficiently. Avoid boxy or bulky shapes, as they create more resistance and slow the car down.
2. Weight Placement
Weight distribution plays a huge role in how fast your car goes. The Pinewood Derby is a gravity race, so the weight of the car helps it gain speed down the track. Placing the majority of the weight toward the rear of the car (just in front of the rear axle) maximizes the potential energy and improves acceleration. Use tungsten or lead weights to get close to the 5-ounce limit.
3. Wheel and Axle Preparation
The wheels and axles are where most friction occurs, so optimizing them is crucial for speed. Make sure to:
- Polish the axles to remove any burrs or rough spots.
- Use a small file and fine sandpaper to smooth the axles completely.
- Check that wheels spin freely and don’t wobble.
- Consider angling the axles slightly to reduce contact between the wheel and the track.
Graphite lubricant is a popular choice to reduce friction between the wheels and axles.
4. Alignment
Even if all other aspects of the car are perfect, poor alignment can ruin your race. When the wheels are not properly aligned, the car may drift or wobble, causing it to rub against the track’s guide rail. This results in a loss of speed. To ensure straight movement:
- Test the car on a flat surface to see if it veers left or right.
- Adjust the axles slightly until the car rolls straight.
- Use the three-wheel design trick raise one front wheel slightly off the track to reduce friction.
5. Center of Gravity
Keeping the center of gravity low and toward the rear improves speed and stability. Experiment with different weight positions during test runs to find the perfect balance between forward motion and stability. A low and rearward center of gravity helps the car release its potential energy efficiently at the start of the race.
Design Ideas for Winning Pinewood Derby Cars
Wedge Design
The wedge is a timeless classic in Pinewood Derby car design. Its sloped front reduces air resistance, and it’s easy to build. Because it has a large flat top, it also allows for easy customization and weight placement.
Thin Slab with Raised Nose
This design uses a very thin body profile with a slightly raised nose to guide airflow. It maximizes speed while still offering enough surface area to attach weights effectively. It’s ideal for racers who want both form and function.
Rocket or Bullet Shape
Inspired by high-speed objects like rockets, this shape minimizes drag and gives a futuristic look. It requires more time and craftsmanship but pays off in performance. Rounded edges and pointed noses enhance airflow direction and reduce turbulence.
Common Mistakes to Avoid
- Overloading weight at the front: It can cause the car to nosedive or become unstable.
- Unpolished axles: Rough axles increase friction and slow down the car significantly.
- Ignoring wheel alignment: Poor alignment leads to wasted energy as the car scrapes against the rail.
- Exceeding weight limit: Cars that are over 5 ounces will be disqualified from the race.
- Decorations that add wind resistance: Keep your car sleek and avoid unnecessary add-ons that disrupt airflow.
Tips for First-Time Builders
Start Early
Give yourself plenty of time to design, build, and test your Pinewood Derby car. Rushing leads to errors that can cost you the race.
Use a Template
If you’re unsure where to begin, use pre-made templates or designs to guide your cuts. Templates can help ensure symmetry and consistency.
Test and Tune
After initial assembly, run multiple test trials. Make small adjustments each time to improve speed. Testing is where good designs become great.
Involve Your Child
The Pinewood Derby is meant to be a bonding experience. Let your child participate in the design, sanding, painting, and testing phases. It helps build skills and creates lasting memories.
The best Pinewood Derby car design combines thoughtful planning, smart engineering, and creative flair. While there’s no one-size-fits-all formula for victory, focusing on aerodynamics, weight distribution, axle preparation, and wheel alignment will give you a solid advantage. Whether you’re aiming for speed, style, or both, the key is attention to detail. With careful effort and enthusiasm, you’ll not only build a winning car but also enjoy the rewarding experience of the Pinewood Derby journey.
